SSL Termination

SSL Termination explains how Emakin behaves when TLS is terminated by a reverse proxy or load balancer instead of by the application itself.

Emakin can serve SSL directly through host configuration, but it also supports proxy-based SSL termination.

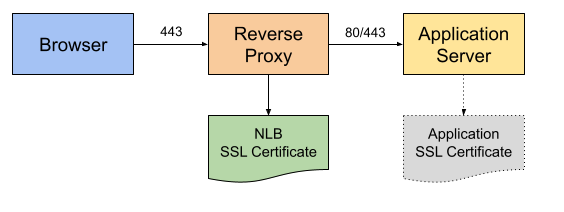

Reverse proxy handling SSL termination for Emakin

Deployment Model

In the documented proxy model:

  • the browser connects to the reverse proxy over HTTPS
  • the reverse proxy handles SSL/TLS
  • the connection from the proxy to Emakin may be HTTP or HTTPS

Emakin only trusts loopback proxy addresses by default and requires additional configuration when the reverse proxy uses an external IP.

Forwarded Headers

Emakin uses these forwarded headers to understand the original request:

X-Forwarded-Proto

Original request scheme (http or https).

X-Forwarded-For

Original client IP and proxy chain.

Warning: If this header is missing, audit logs may record the reverse-proxy IP instead of the real client IP.

X-Forwarded-Host

Original Host header from the client request.

Enabling Forwarded Headers

If the reverse proxy does not use a loopback address, update the configuration.

By Configuration File

Example:

1
2
3
4
5
6
7
8
{
    "Web": {
        "ForwardedHeaders": {
          "ClearProxies": true,
          "ClearKnownNetworks": true
        }
    }
}

By Environment Variables

Environment-variable example:

1
2
3
AK_Web__ForwardedHeaders__ClearProxies=true
AK_Web__ForwardedHeaders__ClearKnownNetworks=true
AK_Web__ForwardedHeaders__ForwardedForHeaderName=CF-Connecting-IP

Diagnostics

Emakin provides a diagnostics page for inspecting request headers when the application runs in the development environment.

Start in Development Environment

Example:

1
2
3
4
// Linux
export DOTNET_ENVIRONMENT=Development
// Windows
set DOTNET_ENVIRONMENT=Development

Then start web mode:

1
<installdir>/AltiKare.Workflow.Agent web

Docker example:

1
docker run -it -p 80:80 -e DOTNET_ENVIRONMENT=Development 6kare/emakin emakin web

Header Diagnostics Page

The documented diagnostics path is:

1
http://my.emakin.com/httpheaders

When reviewing the diagnostics page, pay attention to these fields:

  • Request Scheme should be https for SSL-originated requests
  • Host must identify the correct tenant
  • Request RemoteIp represents the client IP when forwarding is configured correctly
